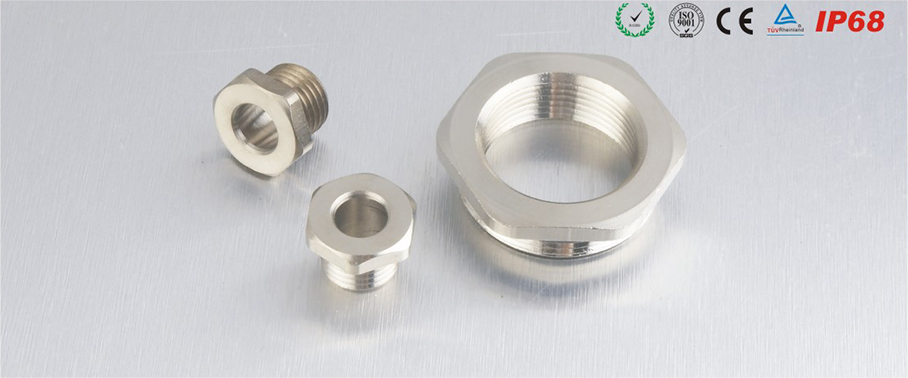

大螺纹转小螺纹型变径头
产品介绍:
产品材质: 以优质黄铜镀镍制成
产品用途: 此产品可将不同的螺纹外径尺寸进行自由转换; 可根据客户要求定制，生产不同螺纹长度及其他不同螺纹之间的转换。
产品形状：六角形或圆形
| 金属变径头--大螺纹转小螺纹型 | ||||||

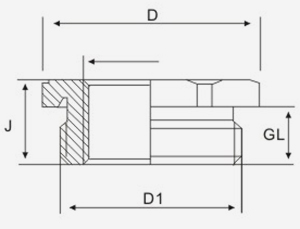

| 圆形系列产品编号 | 六角系列产品编号 | 规格 | 螺纹长度(GL) mm | 高度(H)mm | 六角尺寸(D)mm | |
| 外螺纹(D1) | 内螺纹(D2) | |||||
| JX-M16/12A | JX-M16/12B | M16*1.5 | M12*1.5 | 6 | 8.5 | 18 |
| JX-M20/16A | JX-M20/16B | M20*1.5 | M16*1.5 | 6.5 | 9 | 24 |
| JX-M25/20A | JX-M25/20B | M25*1.5 | M20*1.5 | 7.5 | 10 | 30 |
| JX-M32/25A | JX-M32/25B | M32*1.5 | M25*1.5 | 8 | 11.5 | 40 |
| JX-M40/32A | JX-M40/32B | M40*1.5 | M32*1.5 | 9 | 12.5 | 45 |
| JX-M50/40A | JX-M50/40B | M50*1.5 | M40*1.5 | 10 | 14 | 57 |
| JX-M63/50A | JX-M63/50B | M63*1.5 | M50*1.5 | 10 | 14 | 65 |
| JX-PG9/PG7A | JX-PG9/PG7B | PG9 | PG7 | 6 | 8.5 | 17 |
| JX-PG11/PG9A | JX-PG11/PG9B | PG11 | PG9 | 6.5 | 8.5 | 20 |
| JX-PG13.5/PG11A | JX-PG13.5/PG11B | PG13.5 | PG11 | 6.5 | 9 | 22 |
| JX-PG16/PG13.5A | JX-PG16/PG13.5B | PG16 | PG13.5 | 6.5 | 9.5 | 24 |
| JX-PG21/PG16A | JX-PG21/PG16B | PG21 | PG16 | 7.5 | 10 | 30 |
| JX-PG29/PG21A | JX-PG29/PG21B | PG29 | PG21 | 8 | 11.5 | 40 |
| JX-PG36/PG29A | JX-PG36/PG29B | PG36 | PG29 | 9 | 12.5 | 50 |
| JX-PG42/PG36A | JX-PG42/PG36B | PG42 | PG36 | 10 | 14 | 57 |
| JX-PG48/PG42A | JX-PG48/PG42B | PG48 | PG42 | 10 | 14 | 65 |
| JX-NPT1/2"-NPT3/8"A | JX-NPT1/2"-NPT3/8"B | NPT1/2" | NPT3/8" | 6.5 | 9 | 24 |
| JX-NPT3/4"-NPT1/2"A | JX-NPT3/4"-NPT1/2"B | NPT3/4" | NPT1/2" | 7.5 | 10 | 30 |
| JX-NPT1"-NPT3/4"A | JX-NPT1"-NPT3/4"B | NPT1" | NPT3/4" | 8 | 11.5 | 40 |
| JX-NPT1-1/4"-NPT1"A | JX-NPT1-1/4"-NPT1"B | NPT1-1/4" | NPT1" | 9 | 12.5 | 50 |
